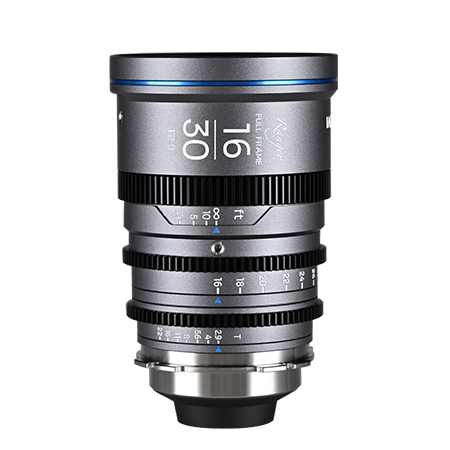

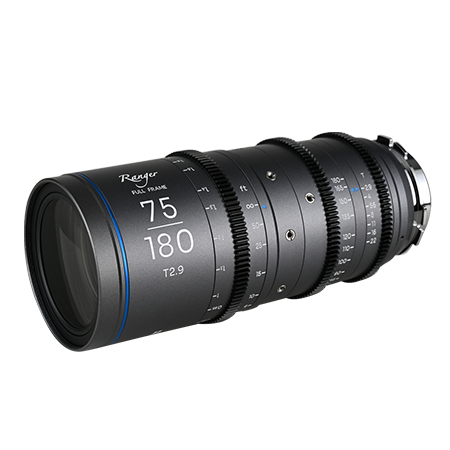

Ranger FF Compact Cine Zoom Series

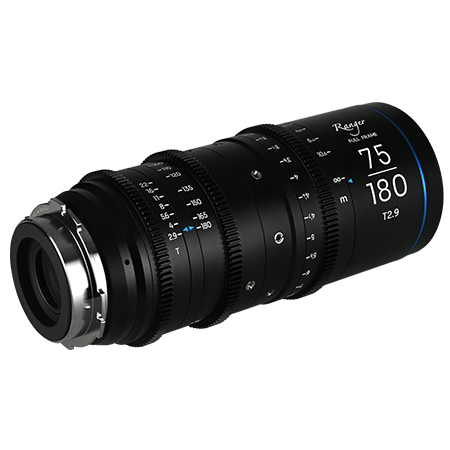

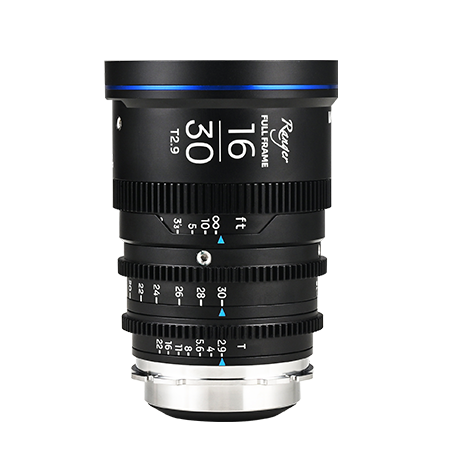

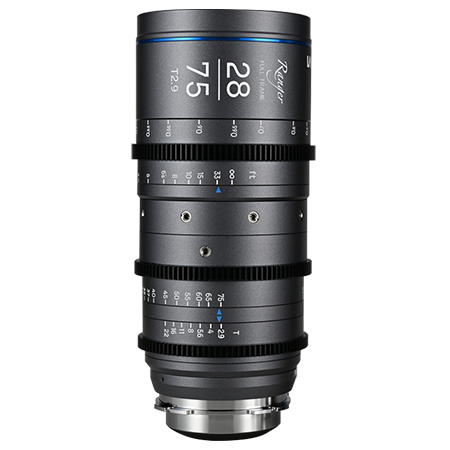

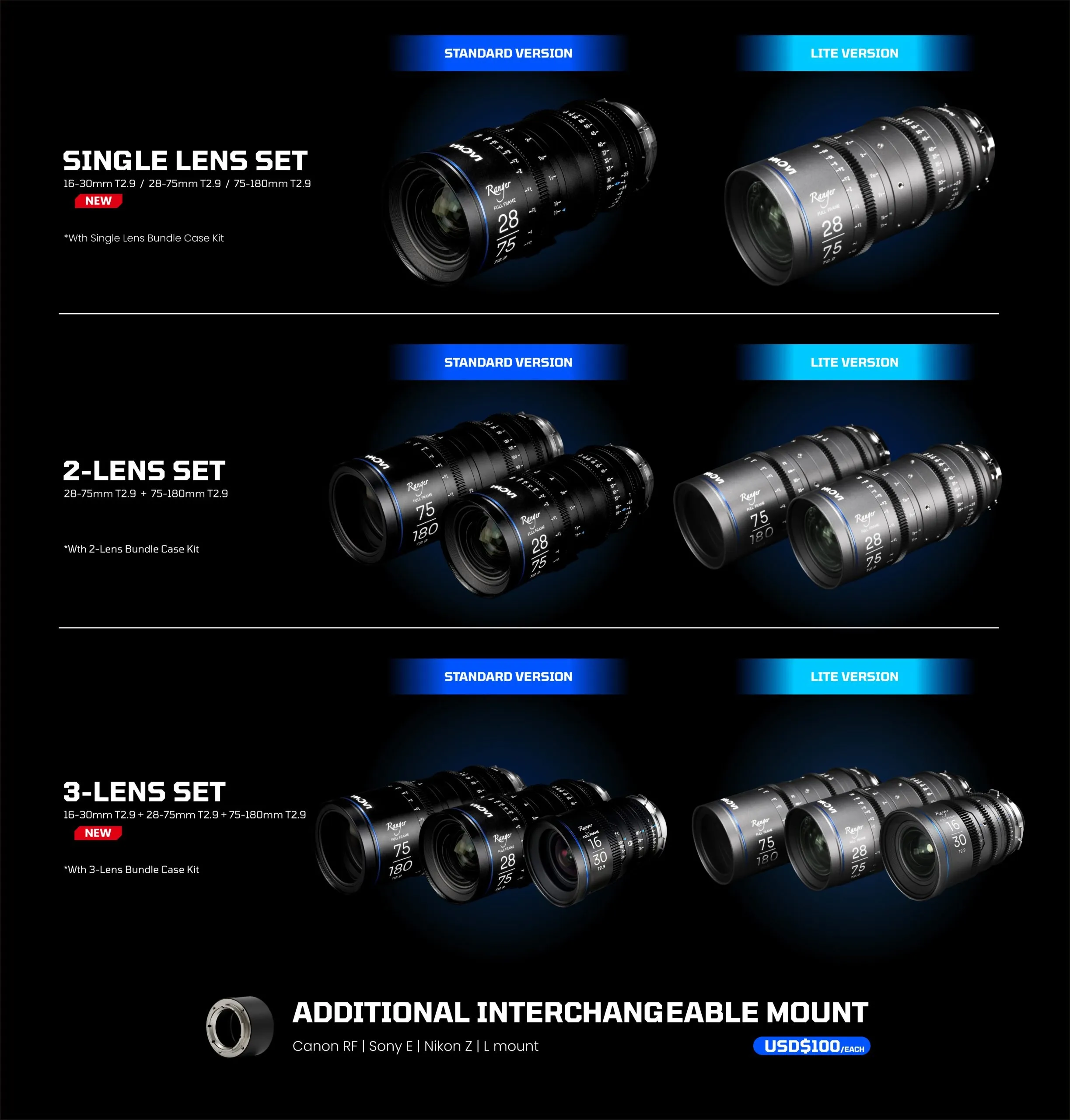

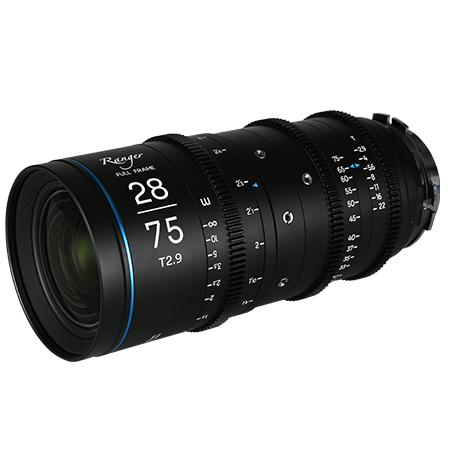

Laowa is thrilled to unveil the Ranger Compact Cine Zoom Series for the full frame market.The lens set comes in FF Ranger 16-30mm T2.9, FF Ranger 28-75mm T2.9 and FF Ranger 75-180mm T2.9 lenses.

space grey
black
L Mount
Nikon Z
Sony E
PL
Canon EF
Canon RF
Buy Now

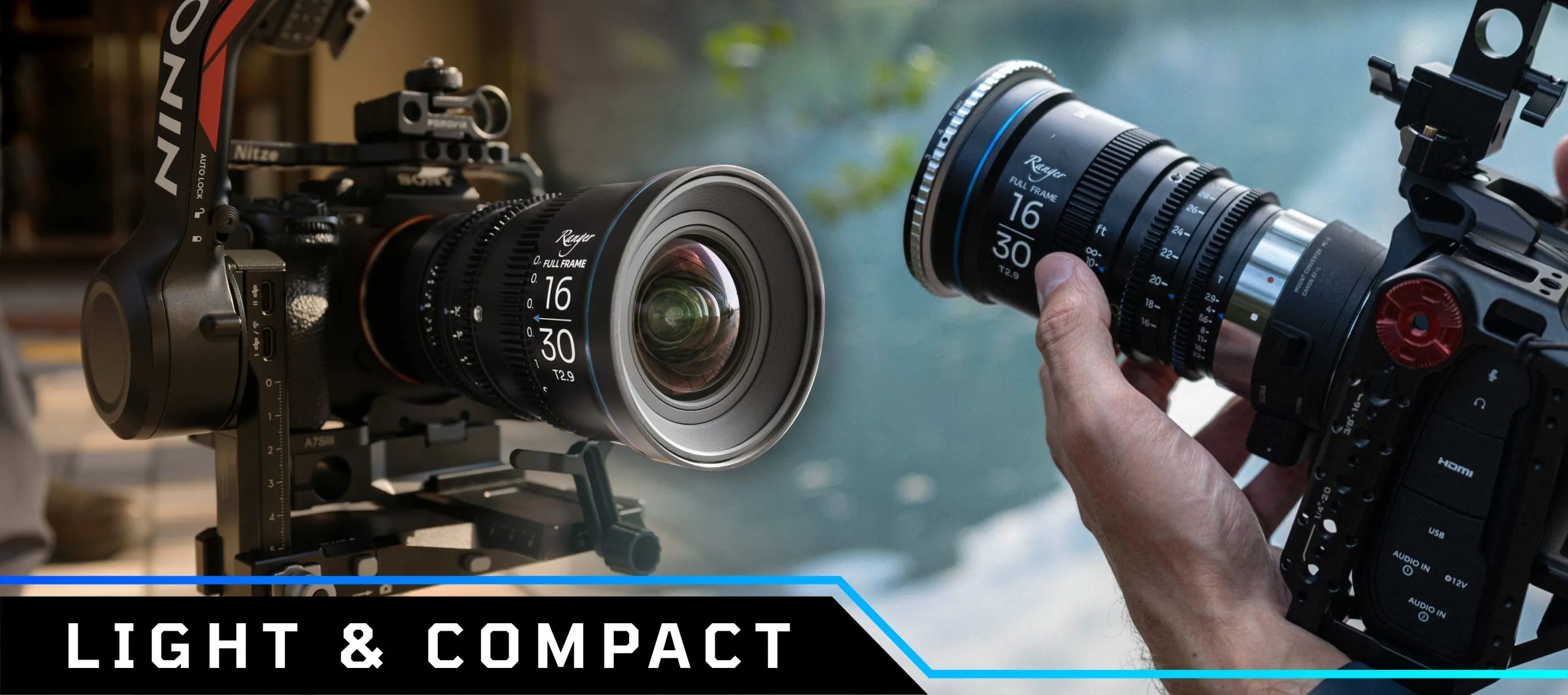

Crafted with a magnesium alloy rehousing lens body, the Ranger Lite version offers 10% lighter in the set, making you enjoy a truly effortless shooting experience.



Full Frame Coverage





全画幅 00_00_00-00_00_30 [480p].gif




上机图1 00_00_00-00_00_30.gif


Constant T2.9 Aperture


Ranger offers a T2.9-T22 aperture range. The lenses maintain a constant T2.9 aperture throughout their zoom range, eliminating the need for exposure compensation when you zoom in. You can work with the lenses in dim light environment effortlessly.




大光圈 00_00_00-00_00_30 [480p].gif



Parfocal Design


You are able to keep the object in focus whenever zooming in or out,
even shoot with the intense zoom at ease without focusing off.



齐焦 00_00_00-00_00_30 [480p].gif


UNSEEN FOCUS BREATHING


低呼吸 00_00_00-00_00_30 [480p].gif


BETTER DISTORTION CONTROL


近似零畸变 00_00_00-00_00_30.gif


Extremely Close Focusing Distance


With close focusing distances of 33cm, 16-30mm excel at capturing intricate details and small subjects. Elevate your storytelling with close-up shots that add depth and dimension to your narrative.



超近对焦距离 00_00_00-00_00_30 [480p].gif

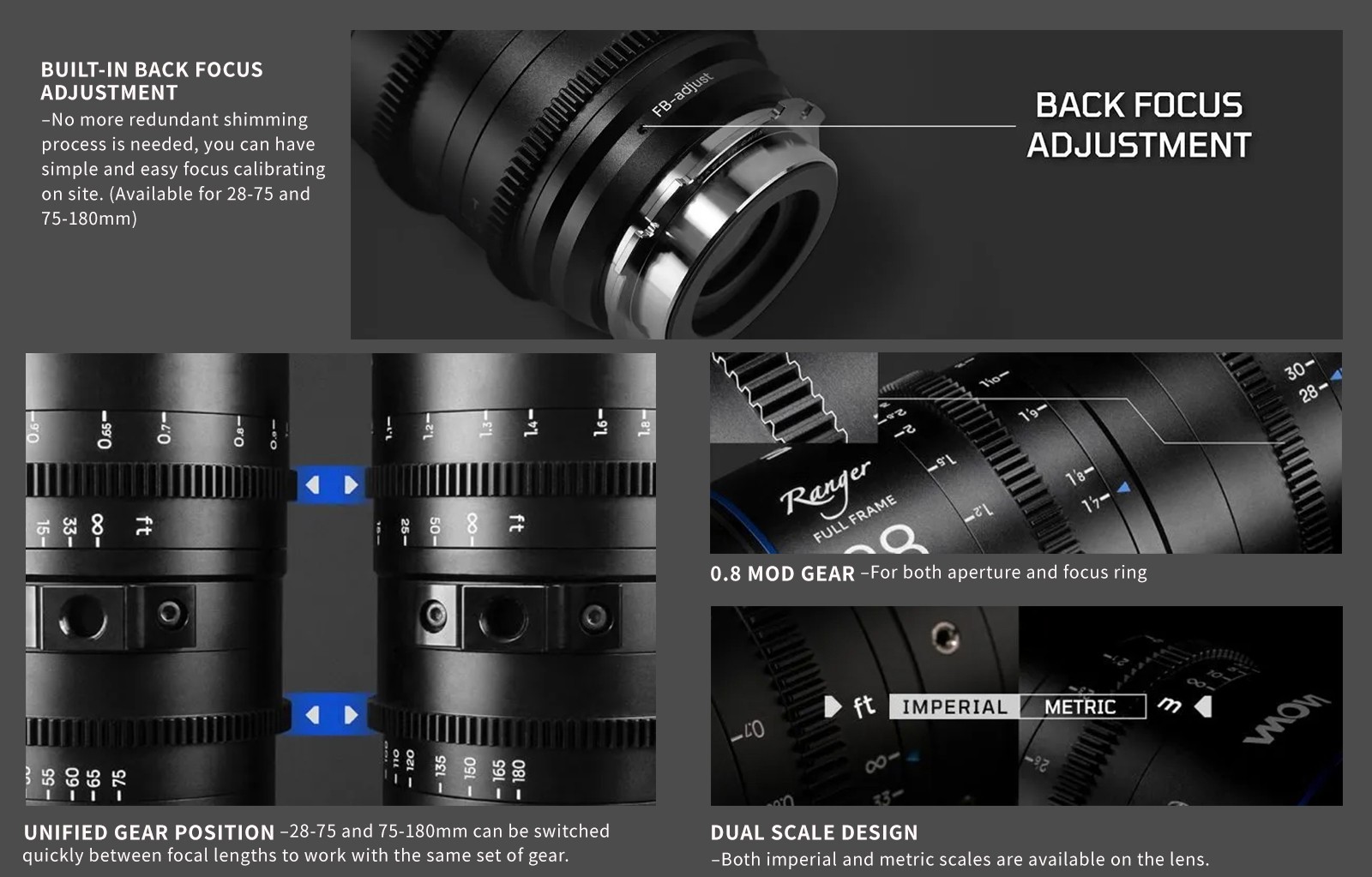

Professional Cine Housing





Various Mounts Available


Each lens comes with a native PL mount, and an interchangeable EF bayonet is included in the box.

For the mirrorless version, Canon RF, Sony E, Nikon Z, and L mount, are available and interchangeable as well.


SAMPLES













Specifications

Name Ranger FF Compact Cine Zoom Series
Format FF
Focal Length 16-30mm / 28-75mm / 75-180mm
Aperture Range T2.9-22
Angle Of View 71.6°-107° / 75.4°-32.2° / 32.2°- 13.7°
Lens Structure 18 Elements in 12 Groups / 22 Elements in 18 Groups / 17 Elements in 14 Groups
Aperture Blades 11
Focus Throw 100° / 270° / 270°
Distance Scale Metric & Imperial (Dual Scale)
Aperture Throw 42°
Zoom Ratio 1.875X / 2.7X / 2.4X
Zoom Throw 100°
Image Circle Diameter Φ43.2mm / Φ43.2mm / Φ43.2mm
Flange Distance PL=52mm EF= 44mm
Geer Mod 0.8mm
Min. focusing Distance 0.33M/1ft ; 0.49M / 1ft7in ; 0.89M / 2ft11in
Max. Magnification 0.145X / 0.23X / 0.217X
Focus Type Manual (MF)

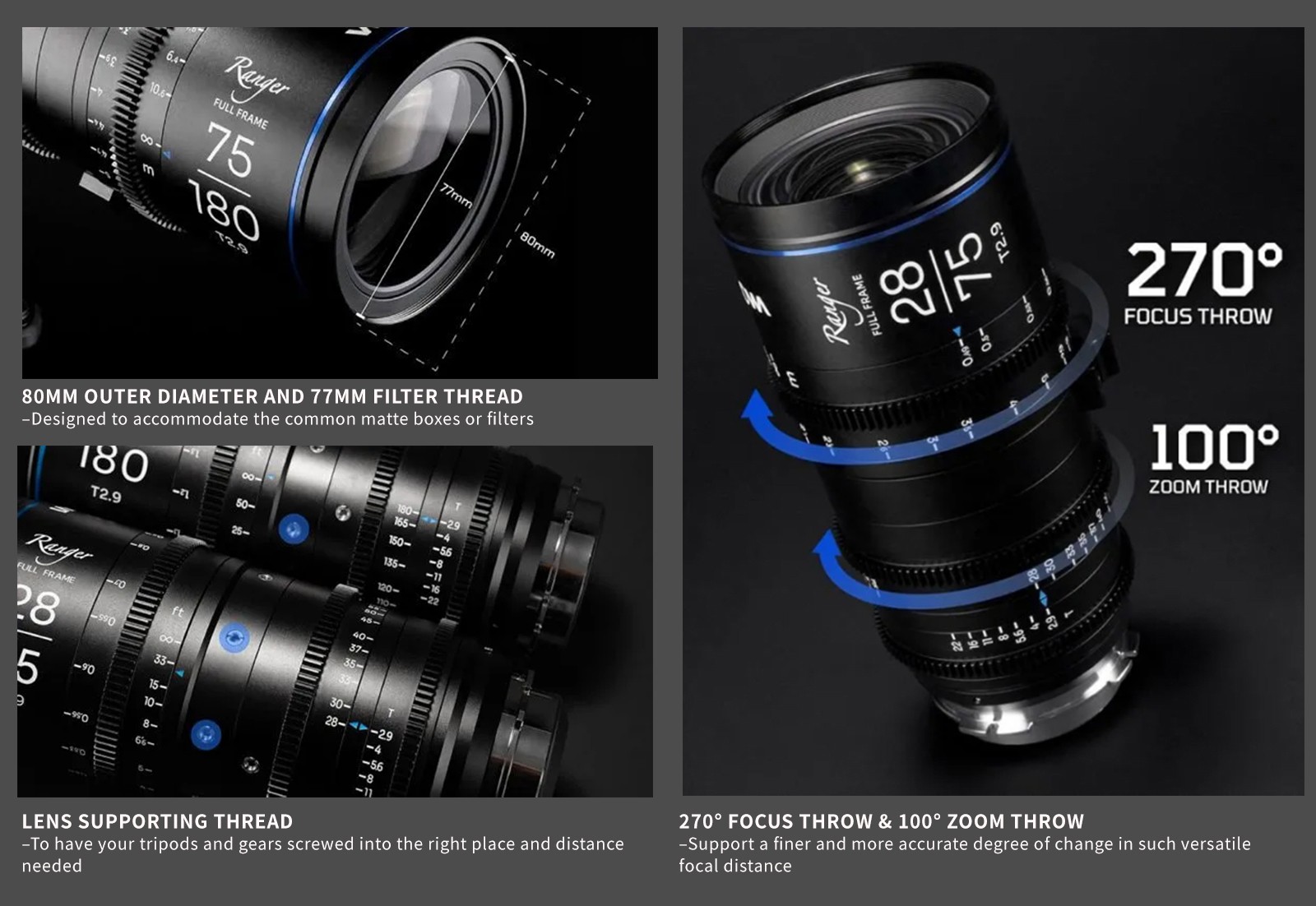

Filter Thread Ø77mm
Front Diameter Ø80mm

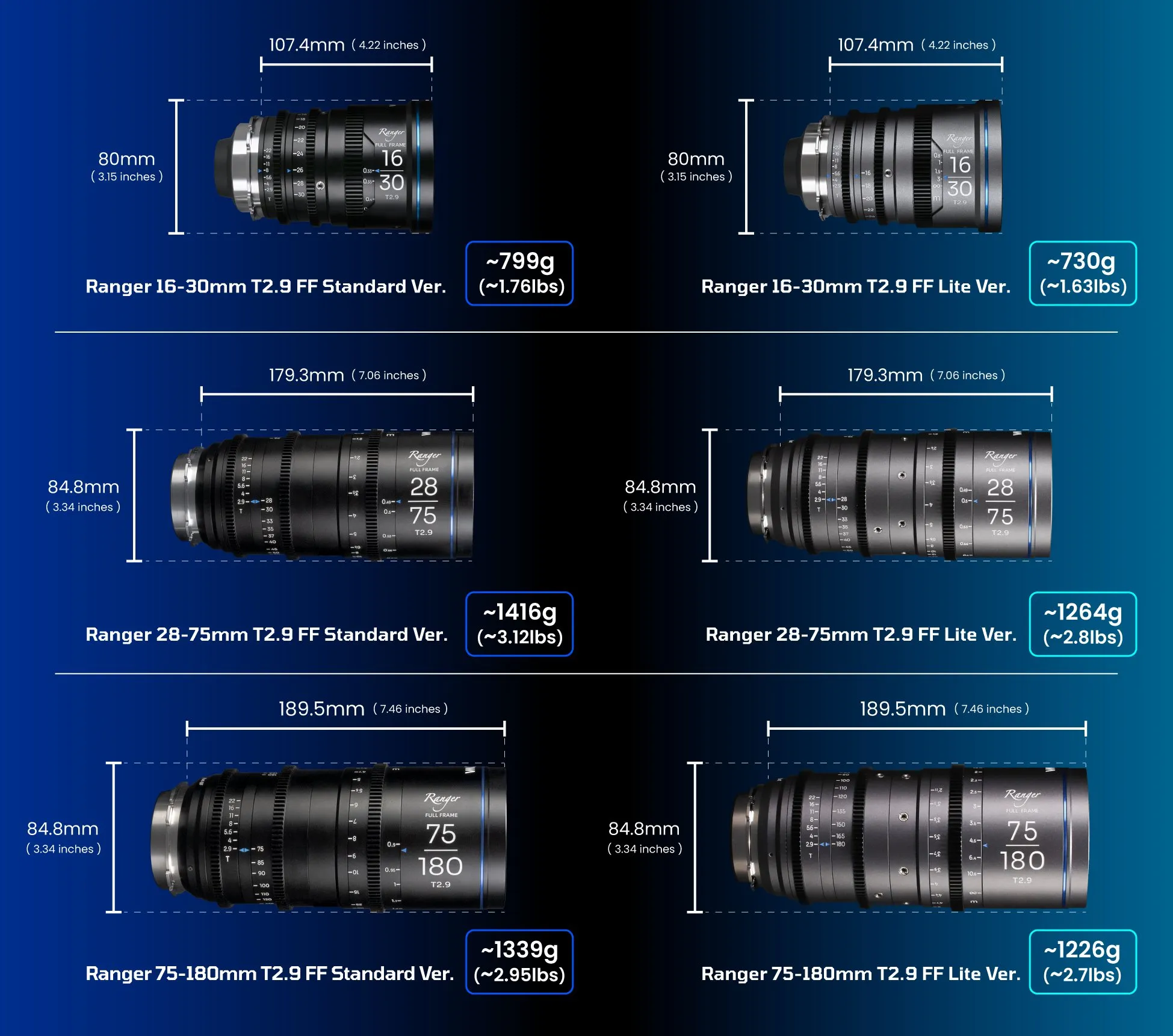

Dimensions ~Ø80mm*107.5mm / ~Ø84.8mm*179.3mm / ~Ø84.8mm*189.5mm
Weight Black:799g / 1416g / 1339g ; Space Grey:730g / 1264g / 1226g
Mounts PL/EF/E/RF/Z/L
