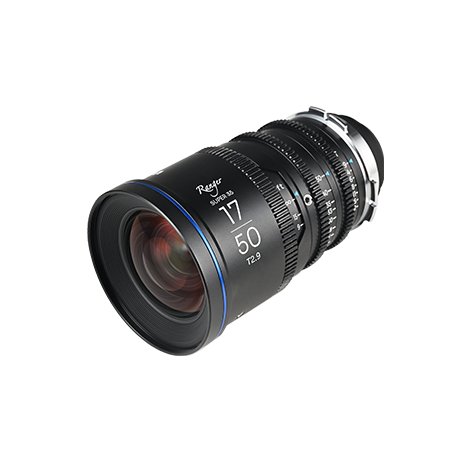

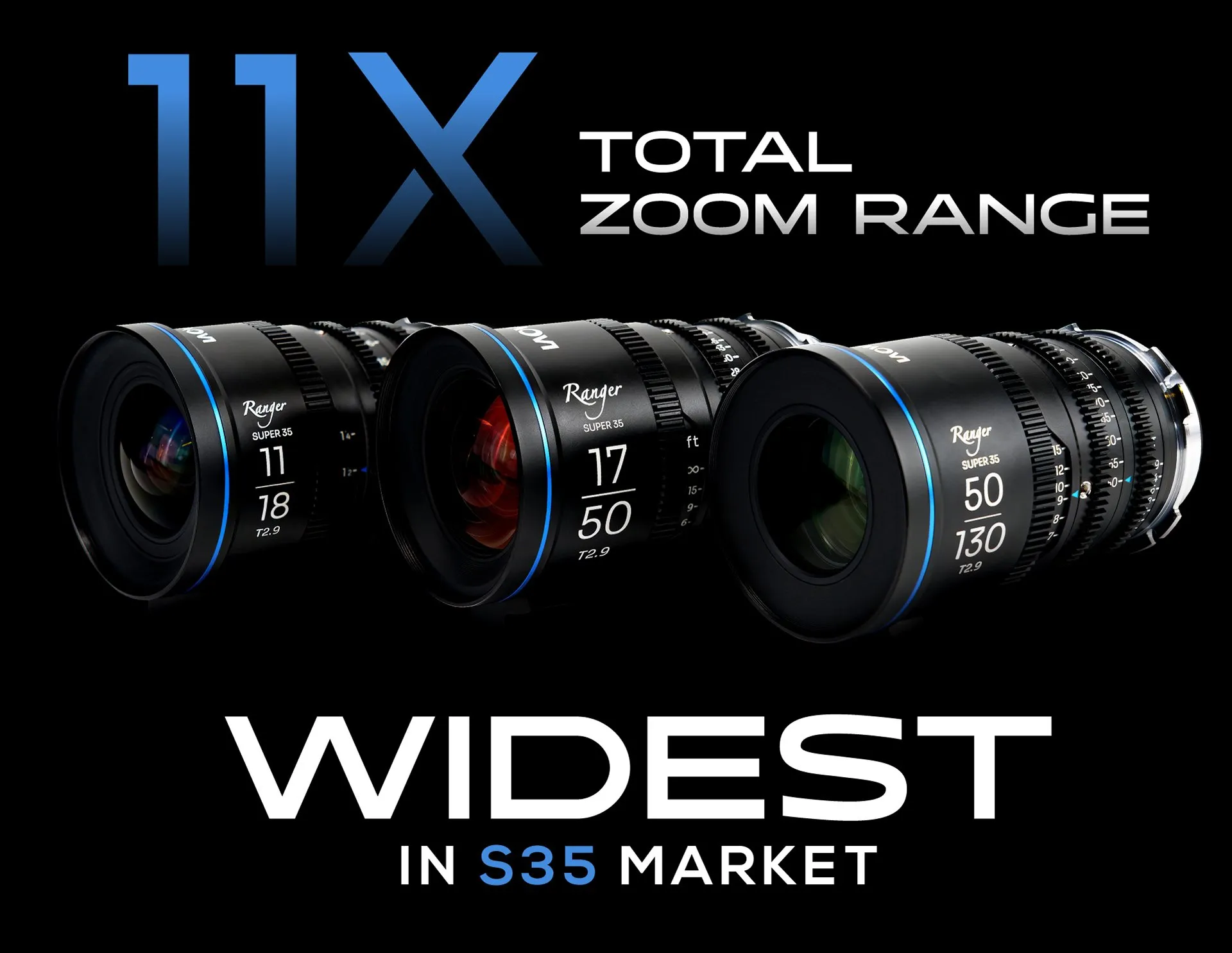

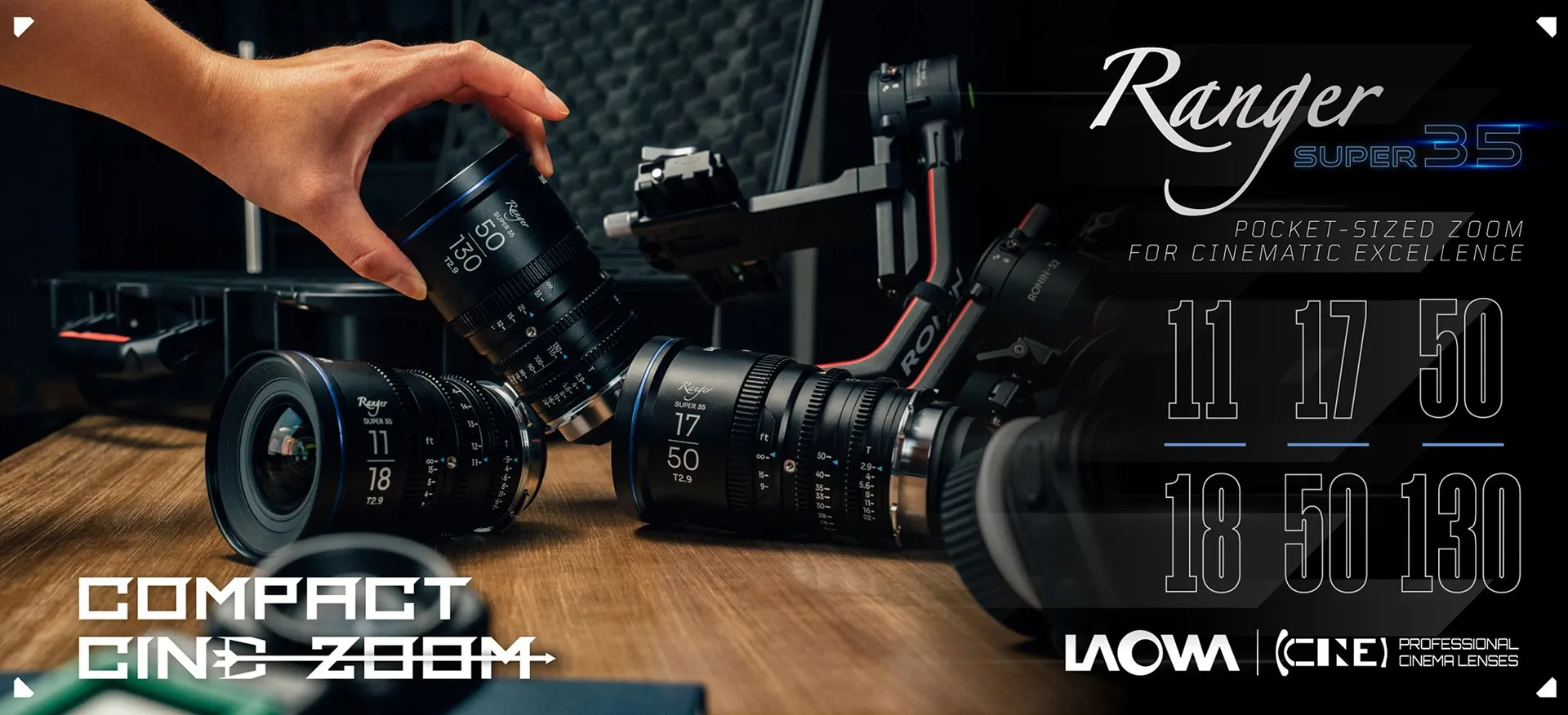

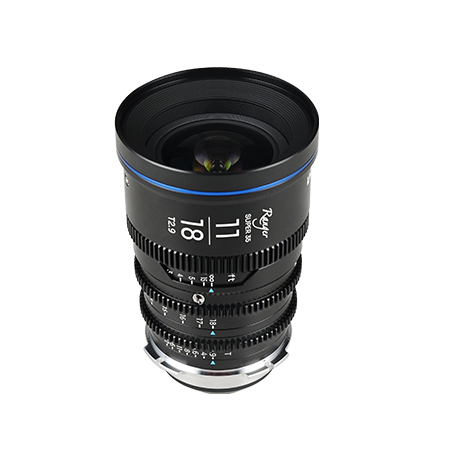

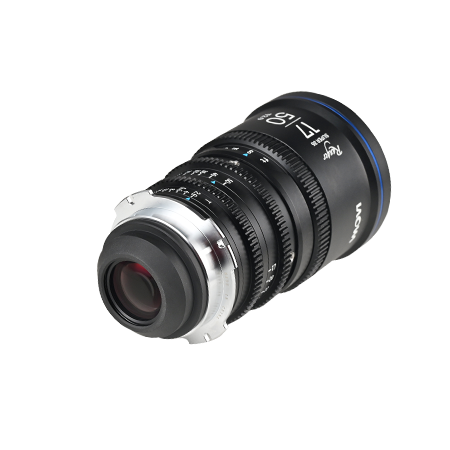

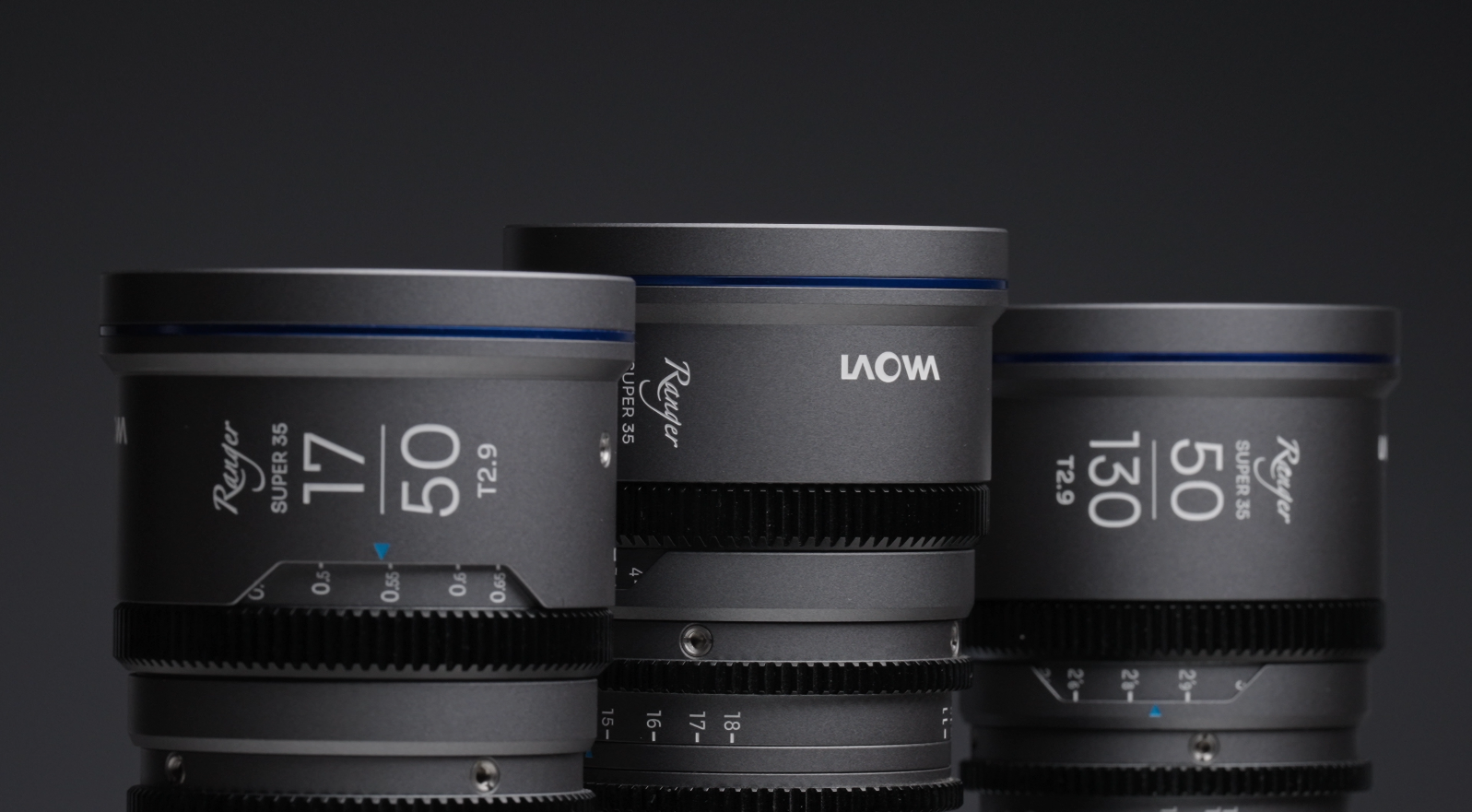

Ranger S35 Compact Cine Zoom Series features the 11-18mm, 17-50mm, and 50-130mm, offering a constant T2.9 aperture and an impressive total zoom range of over 11X.

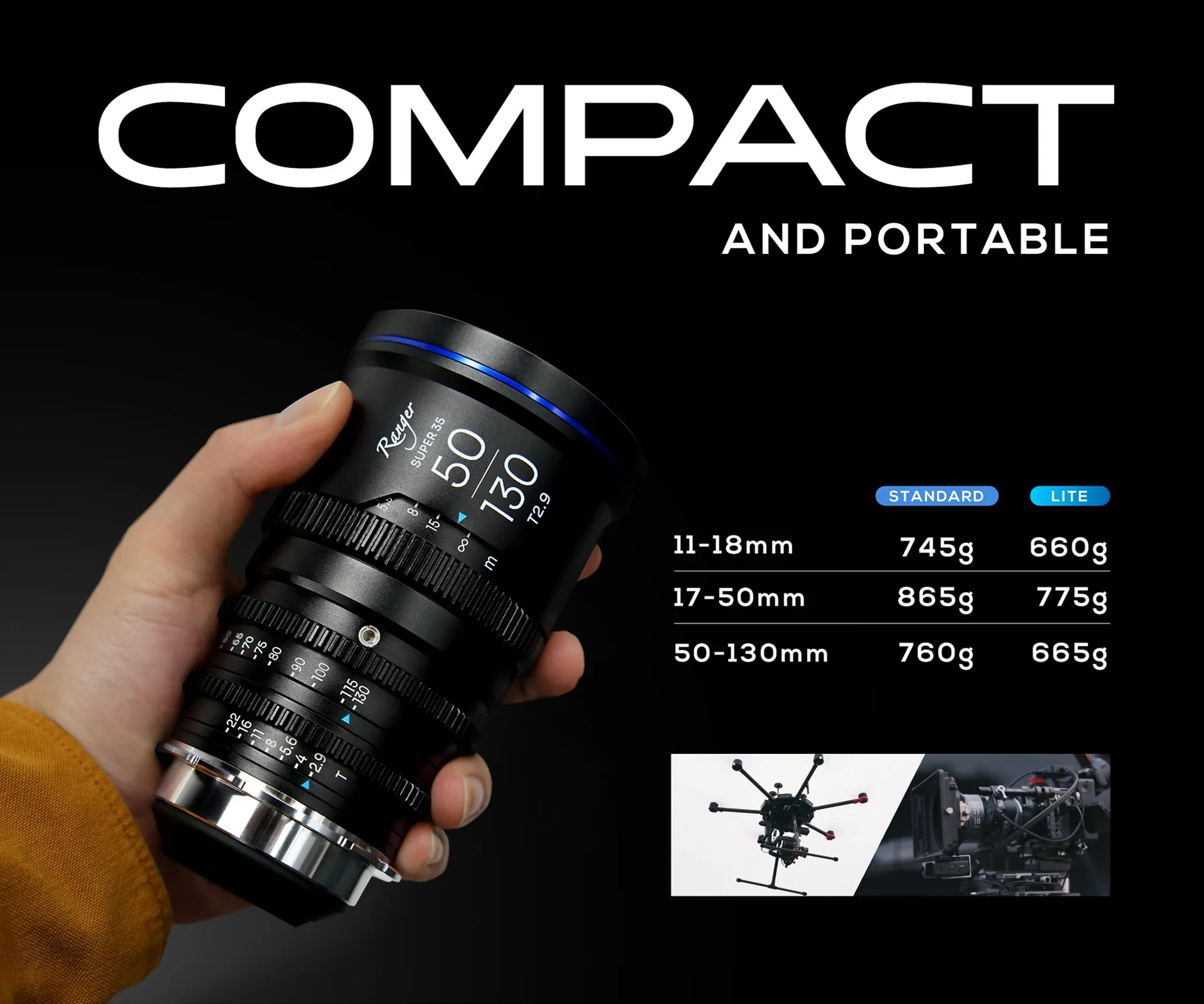

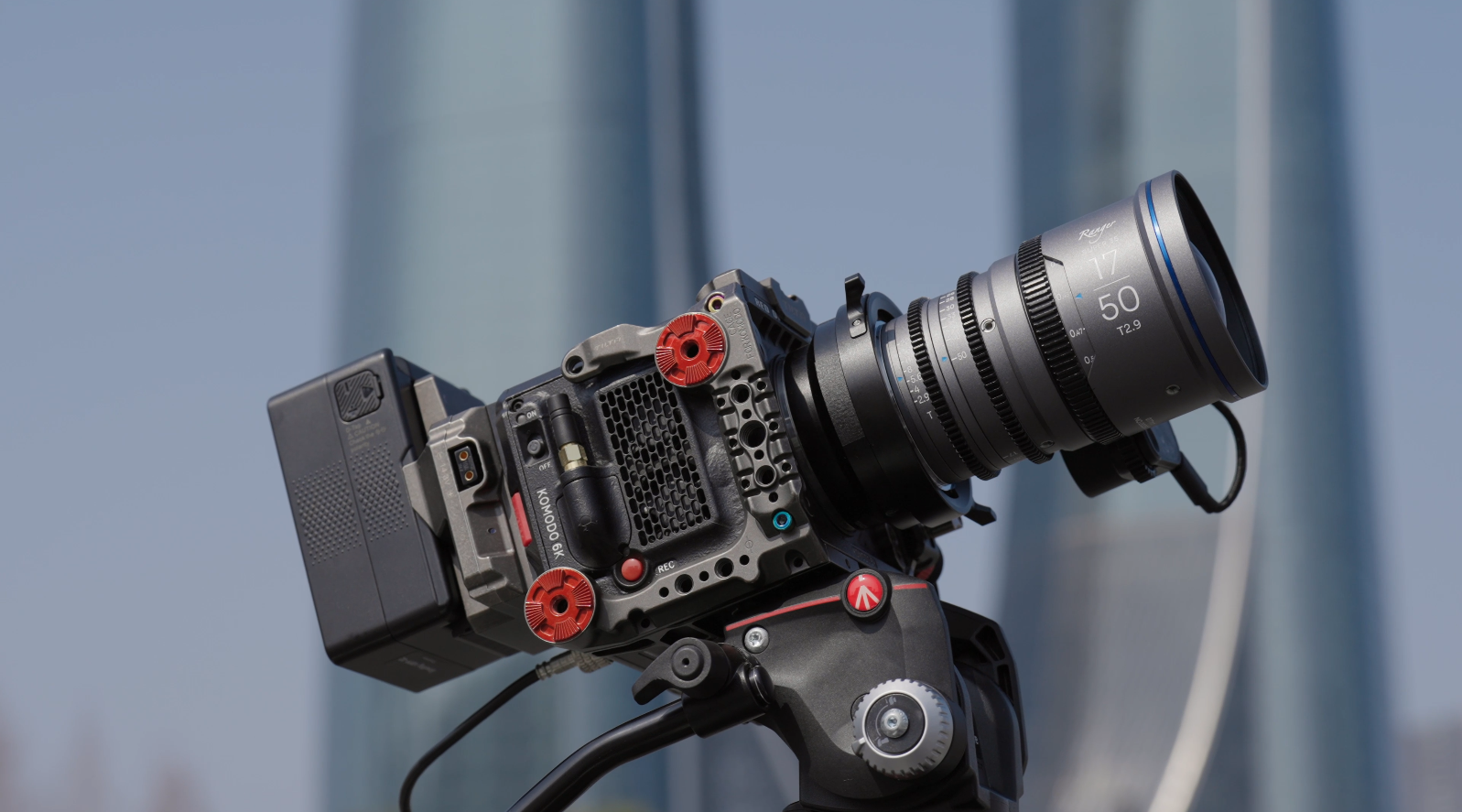

Each lens weighs a mere 745g to 865g for its standard version and 660g to 775g for its lite version, these lenses redefine portability without compromising on quality. Perfect for one-man band productions and on-the-go shooting scenarios, they seamlessly adapt to handheld shots, gimbals, and even FPV drones.
Ranger S35 Compact Cine Zoom Series is designed to accommodate Super35+ sensors with its impressive Ø31.5mm image circle.
Enjoy a Constant T2.9 Aperture throughout the entire zoom range. Perfect for capturing stunning visuals in low-light environments, our lenses empower you to unleash your creativity without compromising on image quality.
With close focusing distances of 36cm/35cm/75cm, these lenses excel at capturing intricate details and small subjects. Elevate your storytelling with close-up shots that add depth and dimension to your narrative.
Indulge in precise and dependable focus with our parfocal design, so your subject can always stay razor-sharp and perfectly focused, whether zooming in or out.

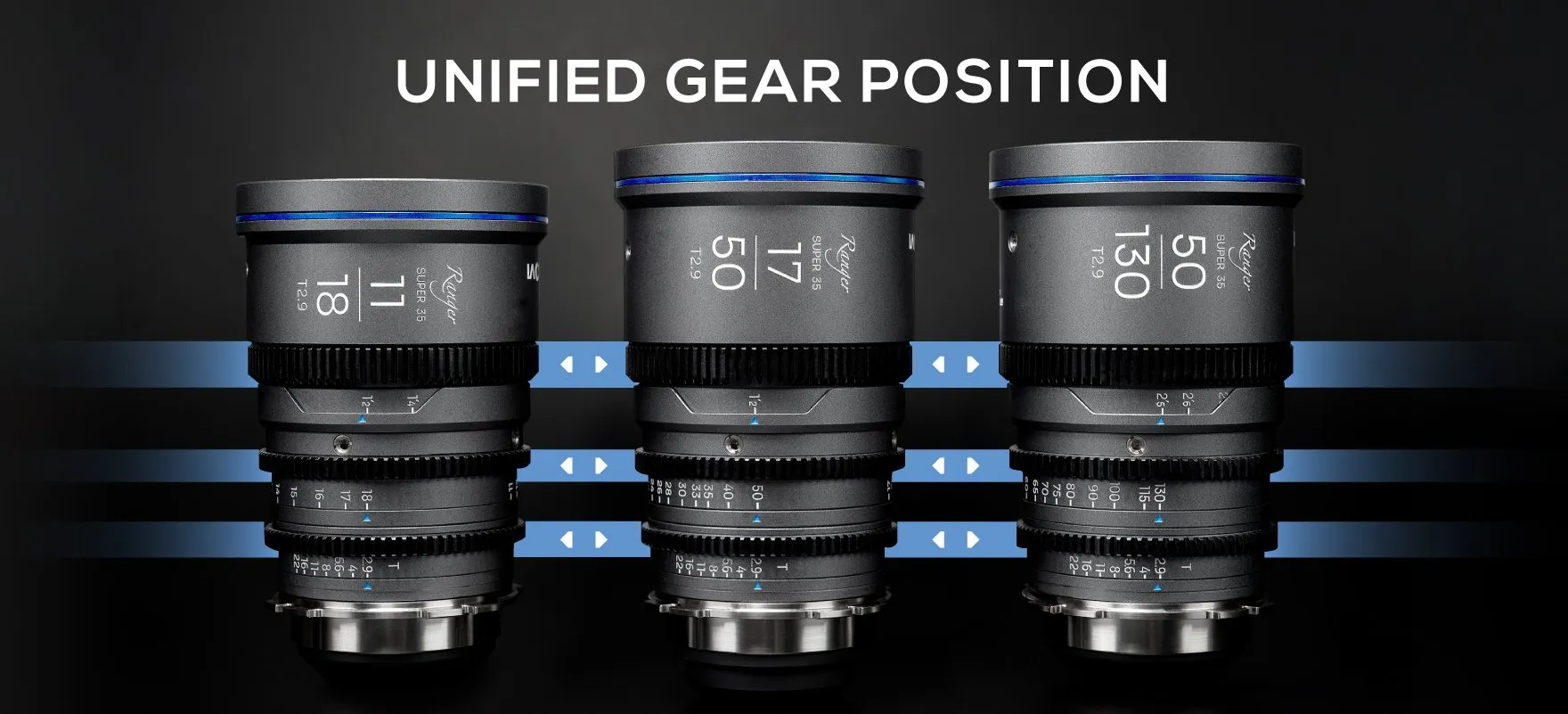

UNIFIED GEAR POSITION – All Ranger S35 lenses can be switched quickly between focal lengths to work with the same set of gears.

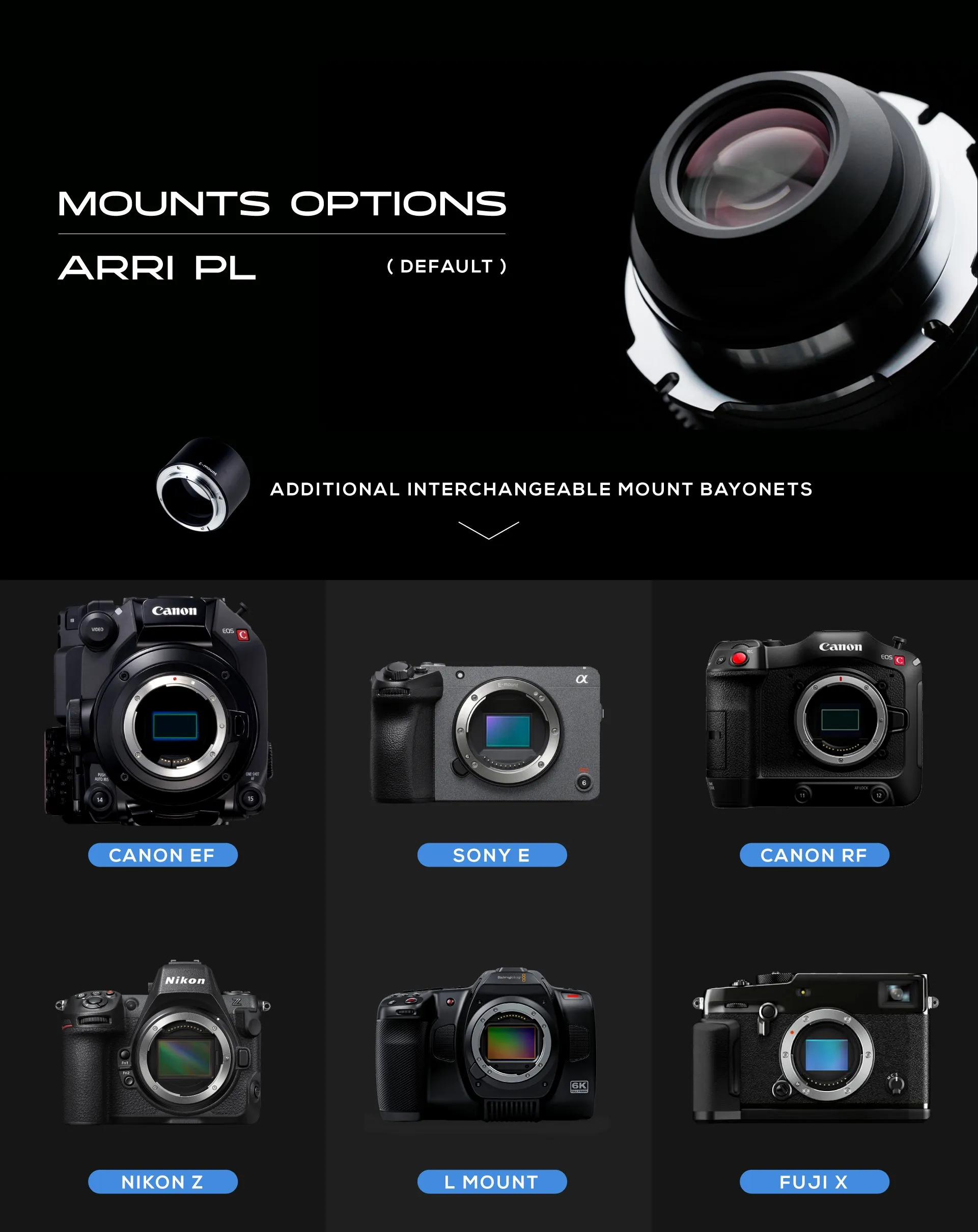

Each lens comes with a native PL mount, and for added convenience, we also offer interchangeable mounts for Canon EF*, Canon RF, Sony E, Nikon Z, Fuji X and L mount.
| Name | Ranger S35 Compact Cine Zoom Series |
| Format | S35 |
| Focal Length | 11-18mm / 17-50mm / 50-130mm |
| Aperture Range | T2.9-22 |
| Angle Of View | 105.3°-77.4° / 80.6°-32.2° / 32.2°-12.7° |
| Lens Structure | 17 elements in 11 groups / 22 elements in 18 groups / 16 elements in 13 groups |
| Aperture Blades | 11 |
| Focus Throw | 110° /270° / 270° |
| Distance Scale | Metric & Imperial (Dual Scale) |
| Aperture Throw | 42° |

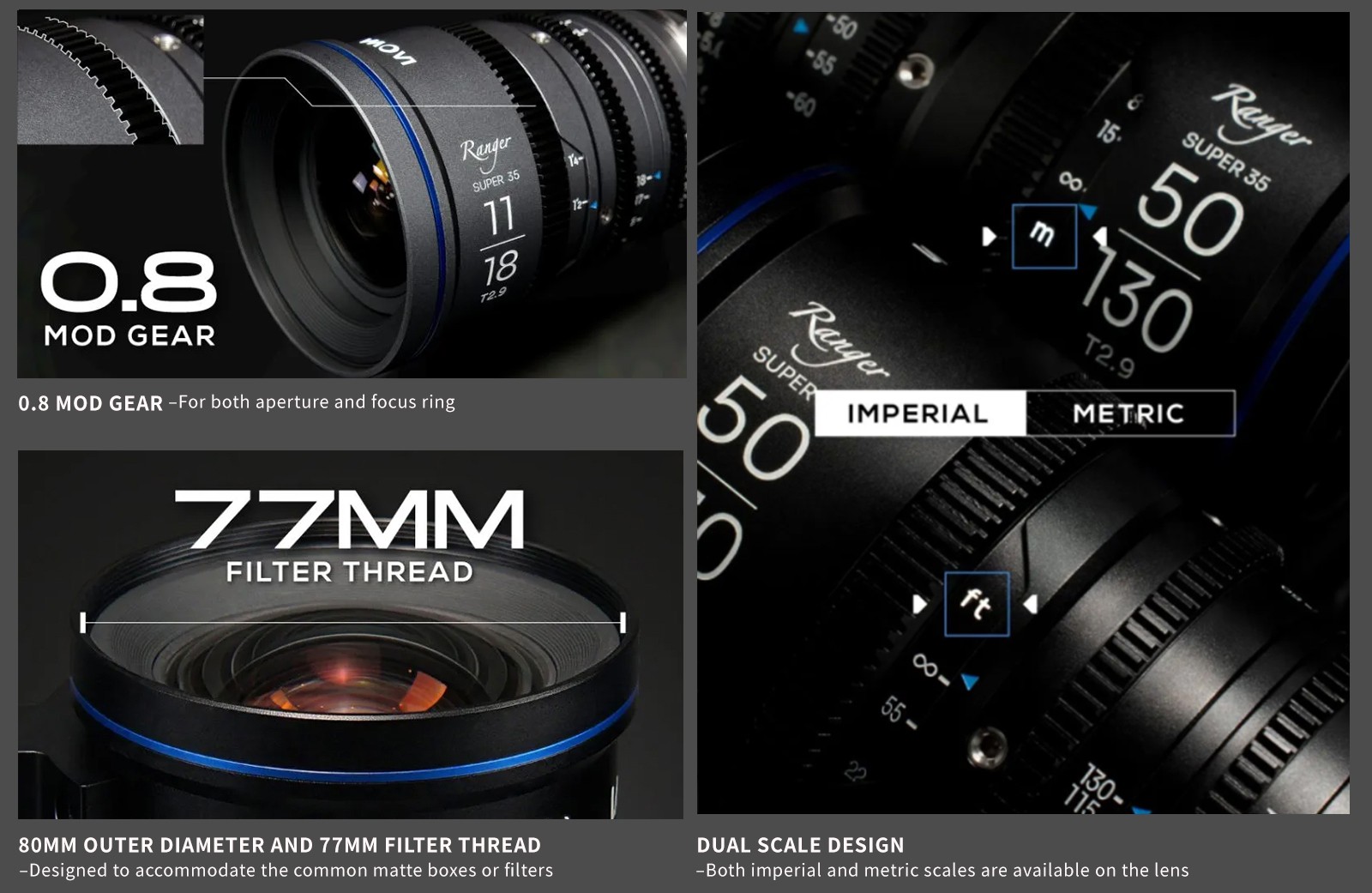

| Geer Mod | M0.8 |
| Min. focusing Distance | 36cm / 35cm / 75cm |
| Max. Magnification | 0.08X / 0.22X / 0.18X |
| Focus Type | Manual (MF) |
| Filter Thread | φ77mm |
| Dimensions | 108mm*Ø80mm / 117mm*Ø80mm / 135.9mm*Ø80mm |
| Weight | Standard:~745g / ~850g / ~760g(Without the front cap and rear cap) ; Space Grey :660g / 755g / 665g |
| Mounts | PL / EF / E / X / R / Z / L |
Laowa is thrilled to unveil the Ranger Compact Cine Zoom Series for the full frame market.The lens set comes in FF Ranger 16-30mm T2.9, FF Ranger 28-75mm T2.9 and FF Ranger 75-180mm T2.9 lenses.
