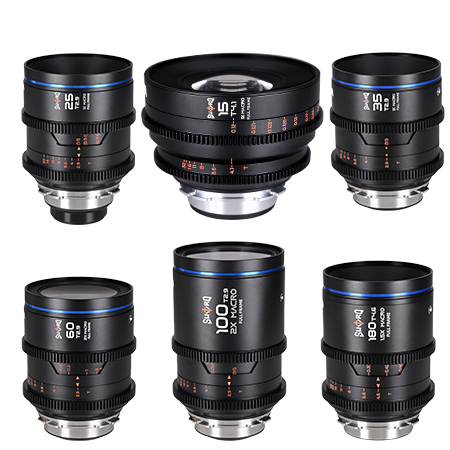

Introducing the Laowa Sword Macro Full Frame Cine series, a groundbreaking collection of macro cine lenses designed for everyone.
The Laowa Sword series is engineered to deliver exceptional sharpness and clarity in every shot. These lenses ensure that every detail is captured with precision, from the center to the edges of the frame. No matter how wide the shots is or how close you get, the sharpness remains.
2 : 1 MAGINIFICATION
The Laowa Sword series sets itself apart with superb macro capabilities, offering some models with an impressive 2:1 magnification rate. This allows for incredibly detailed close-up shots, capturing the finest textures and nuances with unmatched clarity.

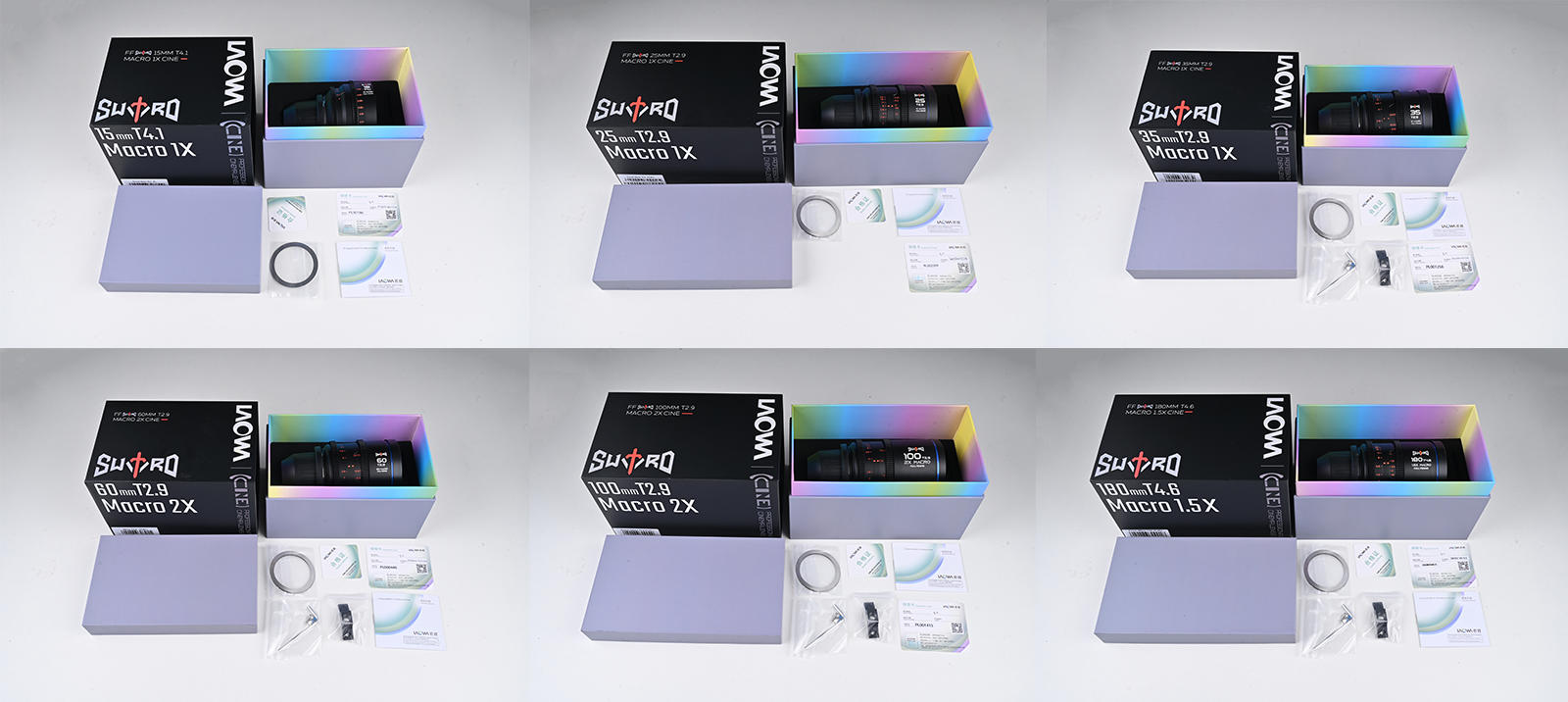

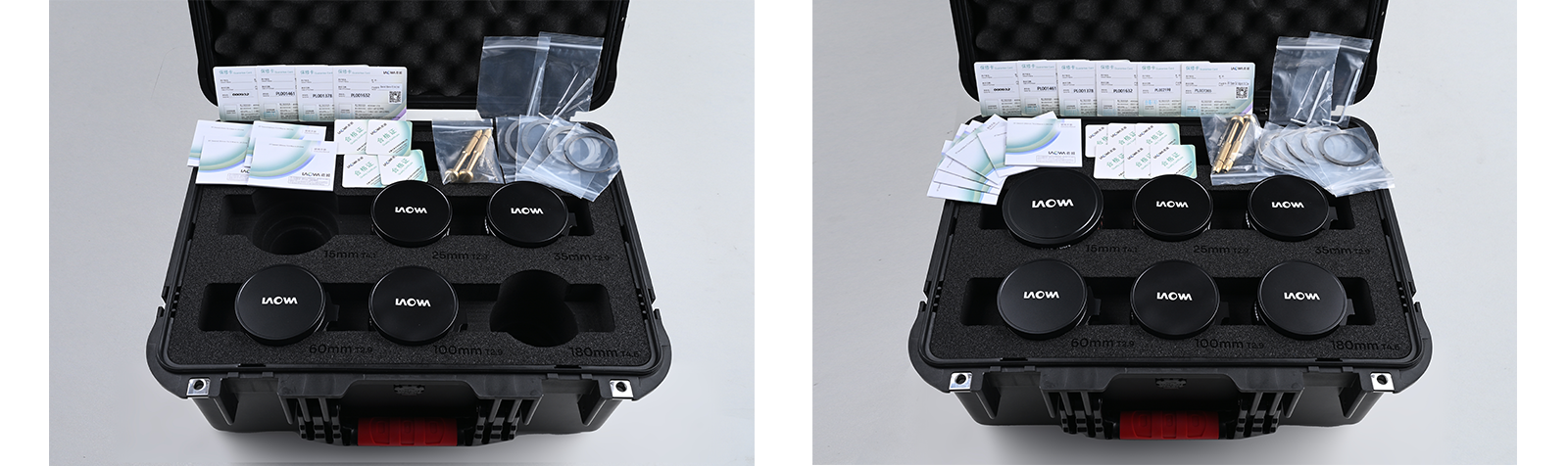

Package
| Name | Sword FF Macro Cine Series |
| Format | FF |
| Focal Length | 15mm / 25mm / 35mm / 60mm / 100mm / 180mm |
| Aperture Range | T2.9-22 / T2.9-22 / T2.9-22 / T2.9-22 / T2.9-22 / T4.6-32 |
| Angle Of View | 110.5° / 81.7° / 63.4° / 39.7° / 24.4° / 13.7° |
| Lens Structure | 12 elements in 9 groups / 13 elements in 10 groups / 13 elements in 10 groups / 14 elements in 11 groups / 12 elements in 10 groups / 12 elements in 9 groups |
| Aperture Blades | 14 / 7 / 13 / 13 / 13 / 13 |
| Focus Throw | 84° / 100° / 270° / 160° / 220° / 270° |
| Distance Scale | Dual Scale |
| Aperture Throw | 36.38° / 40° / 59.4° / 73.1° / 65° / 61.3° |
| Image Circle Diameter | 43.2mm / 1.7″ |
| Geer Mod | 0.8mm / 0.03″ |
| Min. focusing Distance | 12cm / 4.72″ ; 16.8cm / 6.61″ ; 17.8cm / 7.01″ ; 21cm / 8.27″ ; 24.7cm / 9.72″ ; 30.6cm / 12.05″ |
| Min. Working Distance | 0.07cm / 0.028″ ; 2.14cm / 0.85″ ; 3.2cm / 1.26″ ; 5.9cm / 2.32″ ; 8cm / 3.15″ ; 14.2cm / 5.59″ |
| Max. Magnification | 1X / 1X / 1X / 2X / 2X / 1.5X |
| Focus Type | Manual (MF) |

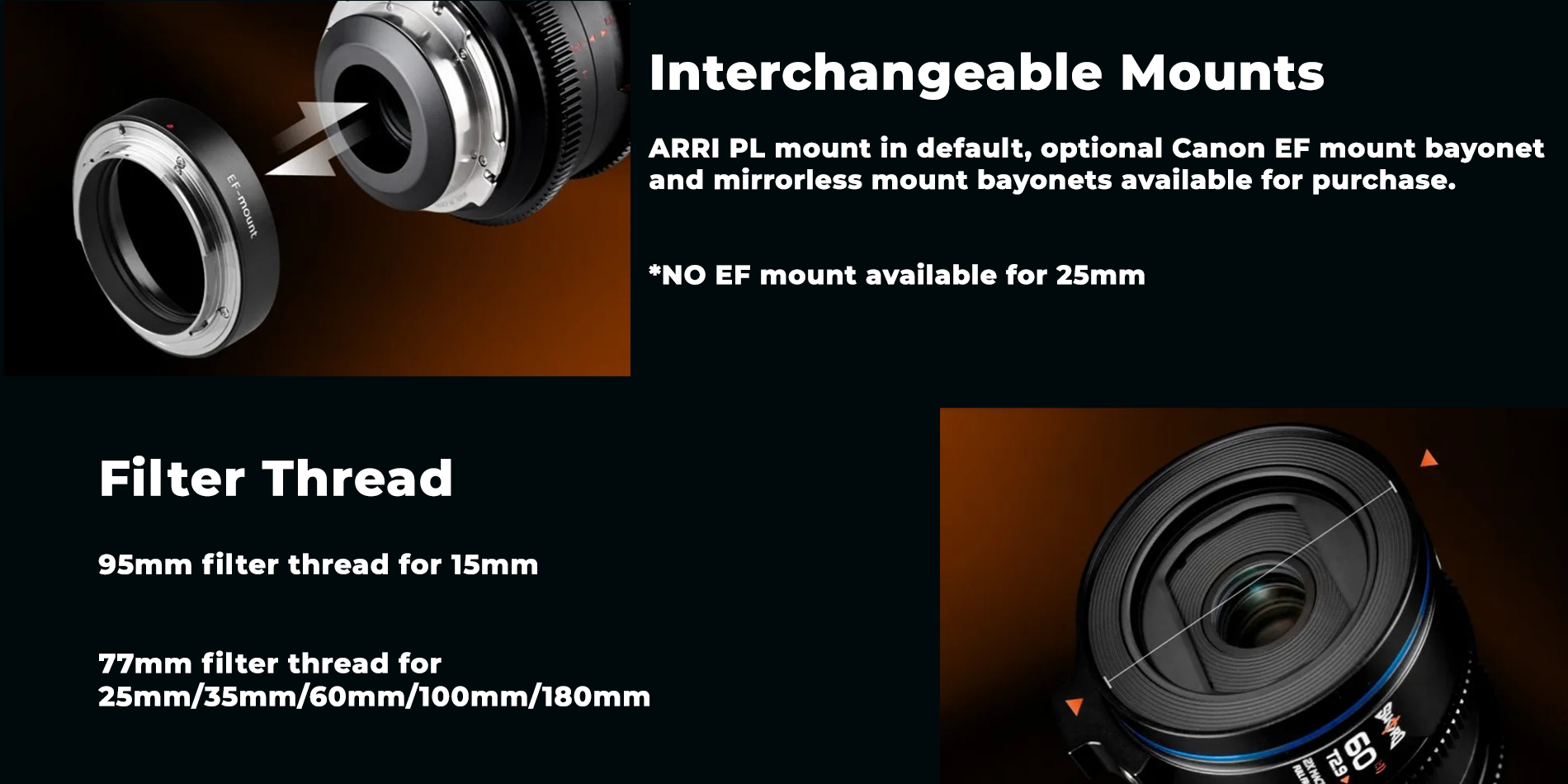

| Filter Thread | Ø95mm / Ø95mm / Ø95mm / Ø77mm / Ø77mm / Ø77mm |
| Front Diameter | Ø100mm / Ø3.94″(15mm) ; Ø80mm / Ø3.15″ |
| Dimensions | 67.27mm*Ø104.8mm / 2.65″*Ø4.13″ ; 94.56mm*Ø85.6mm / 3.72″*Ø3.37″ ; 94.56mm*Ø85.6mm / 3.72″*Ø3.37″ ; 112.93mm*Ø85.6mm / 4.45″*Ø3.37″ ; 139.5mm*Ø85.6mm / 5.49″*Ø3.37″ ; 125.21mm*Ø85.6mm / 4.93″*Ø3.37″ |
| Weight | ~640g ; ~755g / 1.66lb ; ~750g / 1.65lb ; ~736g / 1.63lb ; ~957g / 2.11lb ; ~734g / 1.62lb (Without front lens cap and rear lens cap) |
| Mounts | ARRI PL (Optional: Canon EF, Sony E, Canon RF, Nikon Z, L mount) *NO EF mount available for 25mm |
